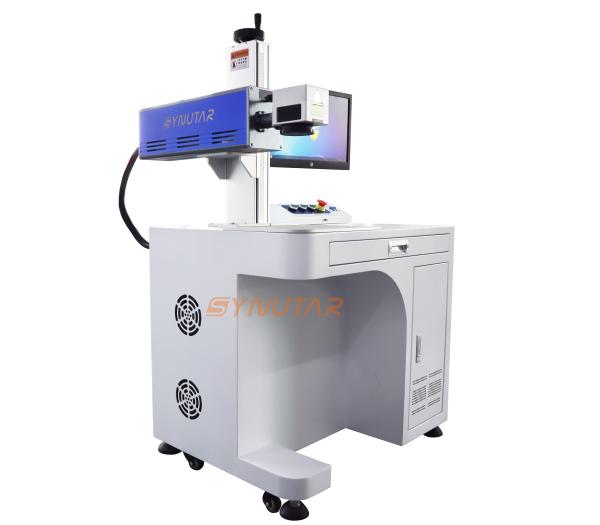

CO2 Laser Marking Machine for Non-Metals
Paper/Wood/Acrylic/Fabric/Leather/Marble Engraving
Product Description:
The CO2 Laser Marking Machine is a non-metal laser marking machine
that is designed to precision-mark on a variety of materials. The
laser source of this machine is a CO2 laser tube/generator, while
the power supply is an AC220V/50Hz(110V/60Hz). The minimum line
width it is able to produce is 0.01mm, and its overall dimension is
1000mm*800mm*1300mm. In terms of repeatability, this machine
provides an accuracy of ±0.002mm. It is perfect for laser
engraving, cutting and marking on a variety of non-metal materials,
such as wood, leather, fabric, rubber, plastic, acrylic, paper,
etc. With this machine, you can also create intricate designs and
patterns with high-level accuracy.
Features:
Adopting CO2 Radio Frequency metal laser generator OR CO2 glass
laser tube, and high-speed scanner, this series laser machine
obtains high speed and high accuracy with laser focusing solution
in the rear part. By using Window interface, the software of the
machine is compatible with different output formats, CorelDraw,
AutoCAD, Photoshop, Illustrator, etc. The power, which controlled
by software is continually adjusted. Due to no consumable material
existing, the fabrication cost is lower. It has high effectiveness
with large marking area and fine marking spots. Besides, the
engraving depth can be controlled and adjusted for purpose,
suitable for all kinds of products.
Technical Parameters:
| Model | SY-C10/C30/C60(RF metal laser generator) |
| SY-CG90/CG100(Glass laser tube) |
| Max. Average Power | 10W/30W/60W(RF metal laser generator) |
| 90W/100W(Glass laser tube) |
| Wave Length | 10.6um |
| Output Stability(8h) | ± 5%/ ± 10% |
| Marking Area | 110mmX110mm (10W) |
| 110mmX110mm~ 140mmX140mm (30W RF metal laser generator) |
| 110mmx110mm ~ 200mmX200mm (60W RF metal laser generator) |
| 110mmx110mm ~ 300mmX300mm (90W/100W Glass laser tube) |
| Output Power | 10% ～100% continuous adjustable |
| Output Frequency | 0KHZ～200Khz continuous adjustable |
| Marking Speed | ≤3000mm/s |
| Min. Character Size | 0.6mm |
| Min. Line Width | 0.12mm |
| Repetition Accuracy | ±0.01mm |
| Operating System | Windows 10/8/7 |
| Cooling System | Air cooling(10W/30W/60W) |
| Water cooling(90W/100W) |
| Environment Temperature | 15℃～30℃ |
| Humidity | 45%-75% |
| Power Voltage | 220V/50Hz/60Hz/10A |
Applications:
Widely apply to different kinds of consumer commodities, food
beverage packaging, medicine packing, architecture ceramic, costume
and accessories, leather and wool gift and crafts, nameplates,
jeans, furniture, etc.
Applicable Materials
Applicable to various metal materials, industrial plastics, plating
materials, rubber, ceramics and etc.
Sample Photos:
Support and Services:
Technical Support & Service for CO2 Laser Marking Machine
We provide professional technical support and service for our
customers who purchase CO2 Laser Marking Machine from us.
- Free consultation for selecting the most suitable machine model
- Free installation and training services
- Free technical support for machine problems
- Regular maintenance and inspection services
- Free spare parts replacement for quality defects
Packing and Shipping:
The packaging and shipping of CO2 Laser Marking Machine includes:
- The CO2 Laser Marking Machine will be packed in a wooden box and
carton box for protection.
- The package will be marked with the product's model and serial
number.
- The machine will be shipped by air or by sea depending on the
customer's needs.
FAQ:
Q1: What is the brand name of the CO2 Laser Marking Machine?
A1: The brand name of the CO2 Laser Marking Machine is SYNUTAR.
Q2: What are the available models of the CO2 Laser Marking Machine?
A2: The available models of the CO2 Laser Marking Machine are
SY-C30, SY-C60 and SY-C100.
Q3: Where is the CO2 Laser Marking Machine manufactured?
A3: The CO2 Laser Marking Machine is manufactured in China.
Q4: What is the minimum order quantity of the CO2 Laser Marking
Machine?
A4: The minimum order quantity of the CO2 Laser Marking Machine is
1.
Q5: What is the certification of the CO2 Laser Marking Machine?
A5: The CO2 Laser Marking Machine is certified with CE.
